ACDE Europe has been active in the European Demolition attachment world since 1994. Today the company specializes in Hydraulic hammers, Grapples and demolition and recycling attachments for kind of demolition and recycling applications.

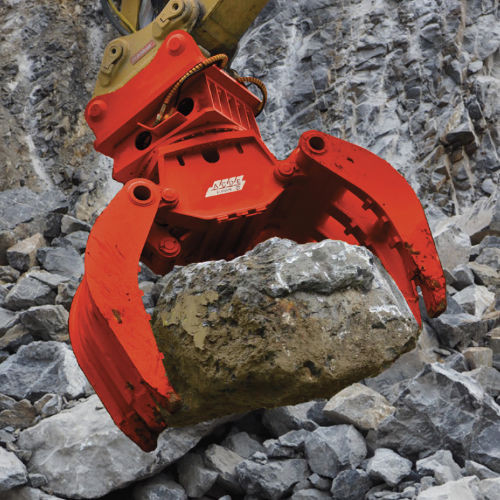

ACDE ARG 7000 Rotating Stone Grapple

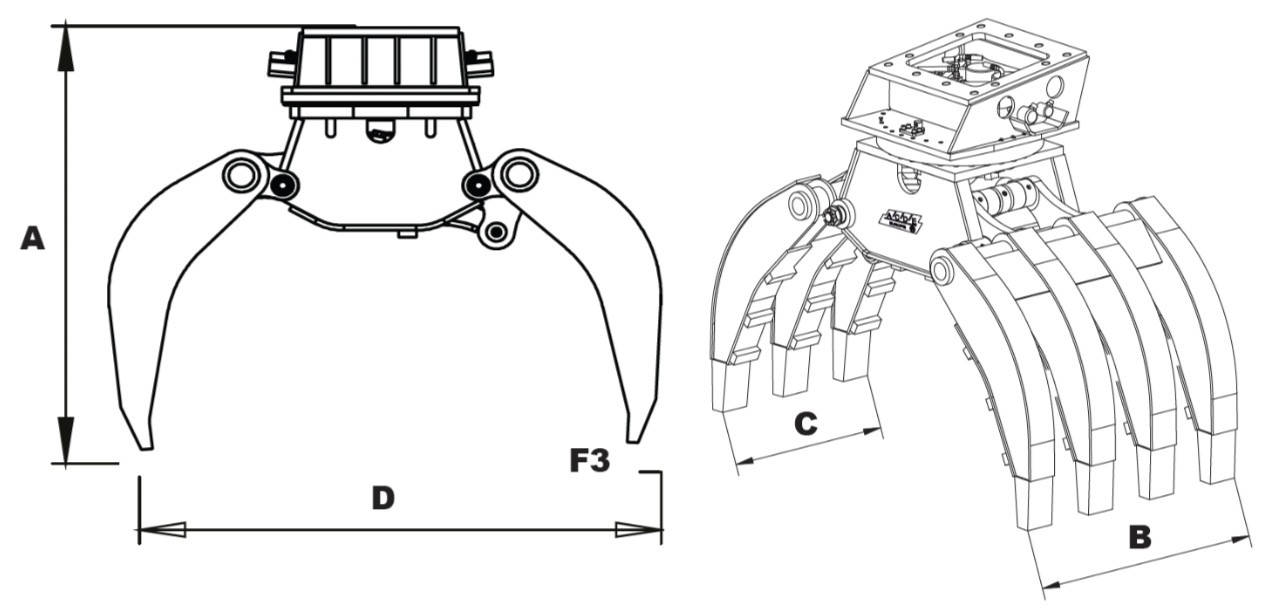

| AMG Range | ARG 7000 |
|---|---|
| A (mm) | 2540 |
| B (mm) | 1470 |
| C (mm) | 1100 |
| D (mm) | 2800 |
| F3 (kN) | 130 |
| Rotation (º) | 360 |
| Rotating Oil Flow (l/min/max) | 35 |
| Rotating Pressure (bar/min-max) | 190-210 |
| Oil Flow (l/min/max) | 250 |
| Set Pressure (bar) | 350 |
| Weight (kg) | 6880 |
| Applicable Excavator (t) | 45-100 |
| Contents (ltr) | 1450 |
| Hole Pattern | AC14 |
- 4 Models for Excavators with working weight of 17 – 100 t
- Low weight
- Short height
- Cylinders are motionless with end damping
- Totall 4 hinge pins
- Turning points sealed with Metalseals
- 2 rotationmotor/ ARG-7000 has 4 rotationmotor
- Chromed and hardened pins
- Kinematic design link
- Long hinge arms to cylinder for more pinching power
- Greasenipples easy access not in pins
- Closed slewing ring with grease bed
- Thick slewing ring bottemplate with long bolts
